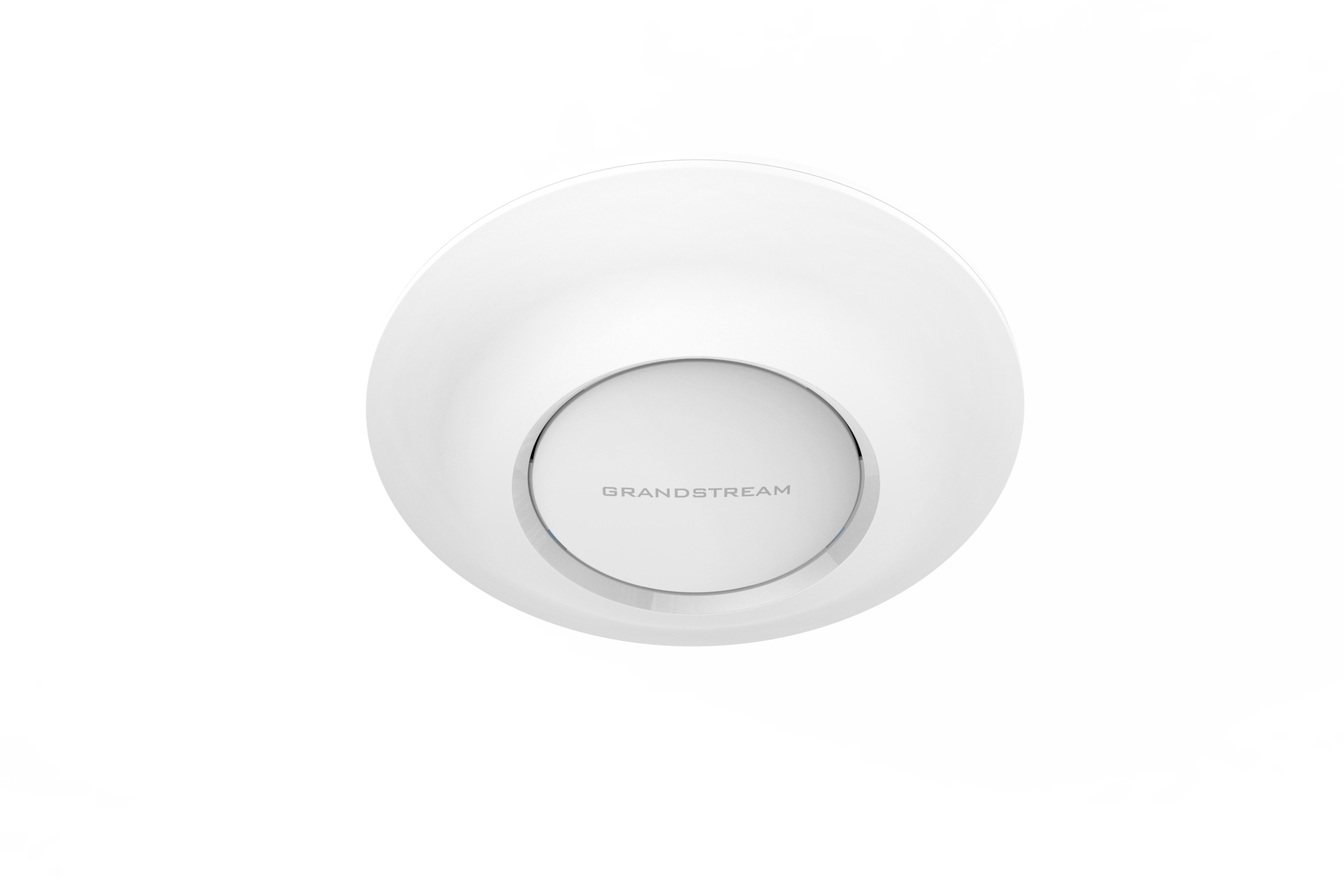

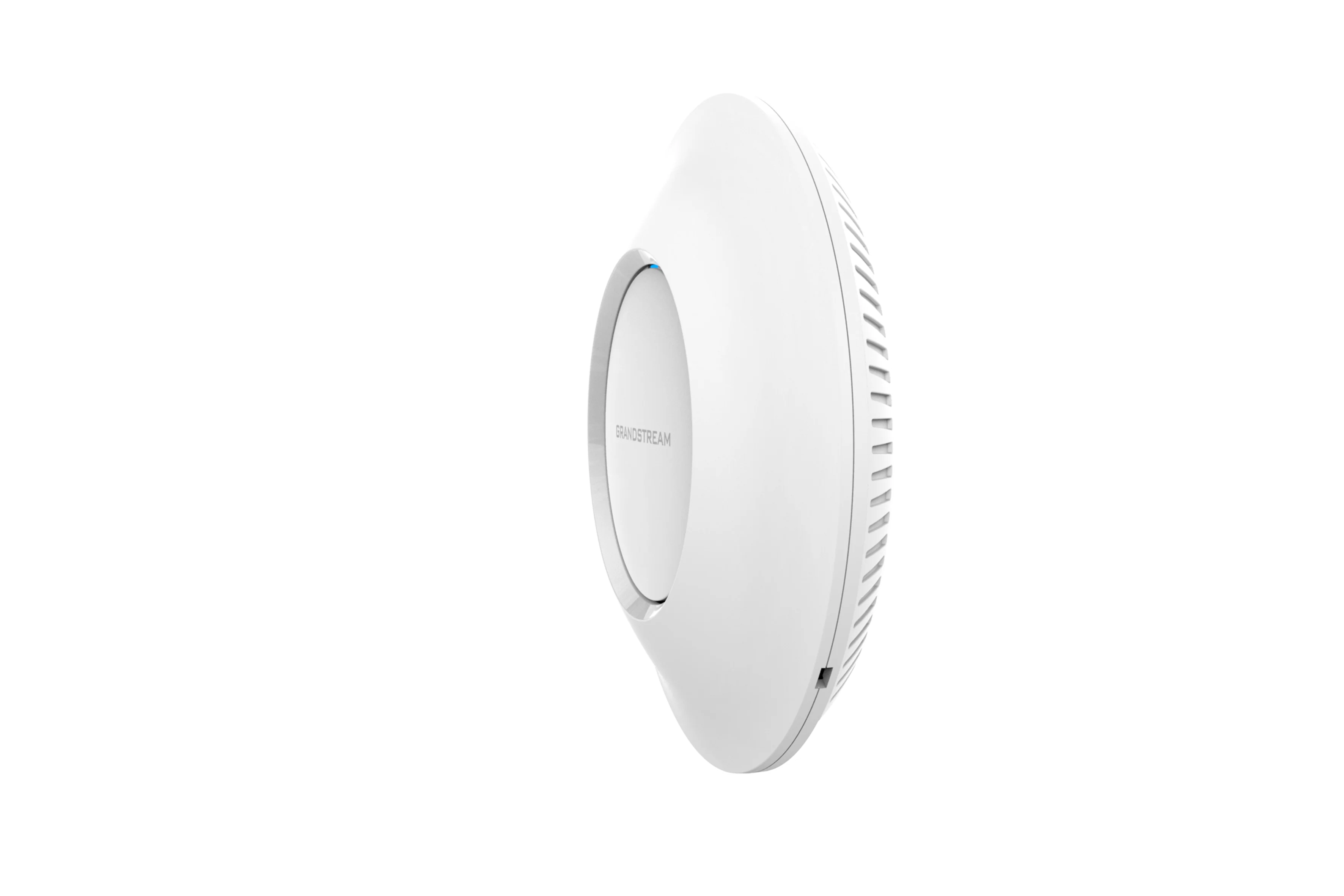

GWN7625 Wi-Fi 5 Access Point
FJ$269.00
Price does not include local shipping. Shipping is calculated at checkout.
Description
The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band.
Specifications
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
|---|---|
| Antennas | 6 single frequency internal antennas 2.4GHz, gain 3.5dBi 5GHz, gain 4.5dBi |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Coverage Range | Up to 165 meters *coverage range can vary based on environment |
| Concurrent Clients | 200 |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| Power and Green Energy Efficiency | Supports 802.3az PoE 802.3af/ 802.3at; Maximum Power Consumption: <13W |
| Unit Dimension | 205.3mm(L)x205.3mm(W)x45.9mm(H) |
| Package Content | GWN7625 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Installation Guide |
More Details
The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants and more. It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7625 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7625 is also supported by GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7625 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.
